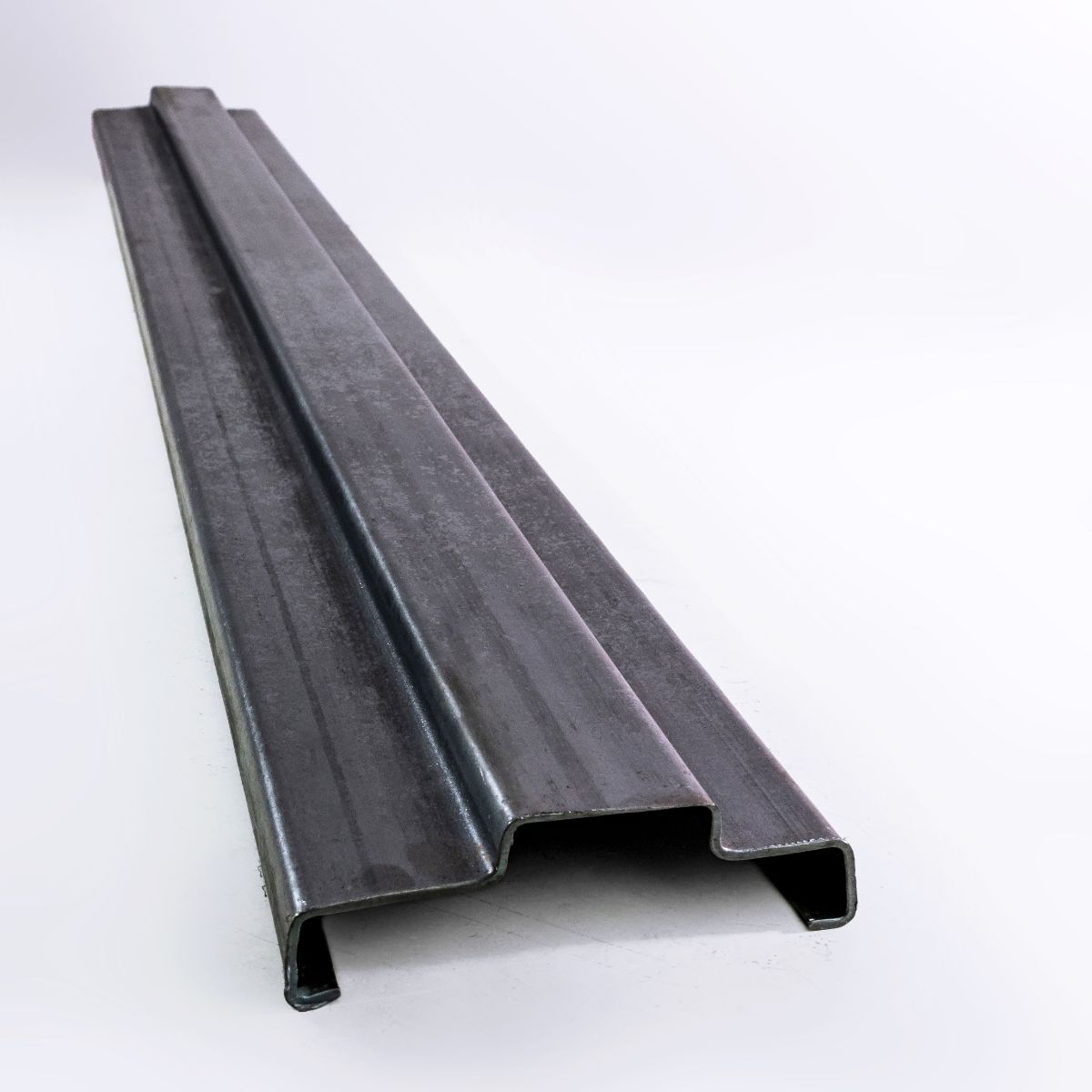

Door Frames
Door frame is another open profile produced out of hot rolled coils in standard length of 6 Meters but can be customized. They are produced in thicknesses of 1mm, 1.2mm, 1.5mm and 2mm.
Dimensions of Door Frames
| D (mm) | W1 (mm) | W2 (meters) | T (mm) | Length (meters) | Weights / PC (kg) |
|---|---|---|---|---|---|
| 130 | 45 | 35 | 1.0 | 5.8 | 10.88 |
| 130 | 45 | 35 | 1.0 | 6.0 | 11.25 |
| 130 | 45 | 35 | 1.2 | 5.8 | 12.57 |
| 130 | 45 | 35 | 1.2 | 6.0 | 13.00 |
| 130 | 45 | 35 | 1.5 | 6.0 | 15.50 |
| 130 | 45 | 35 | 1.5 | 6.0 | 21.00 |
